How to Troubleshoot DC Bus Faults in VFDs?

When a DC bus fault occurs in a variable frequency drive (VFD), it can cause serious downtime, equipment damage, and financial loss—but with systematic troubleshooting, these faults can be quickly identified and resolved.

A DC bus fault in a VFD occurs when any component across the DC bus fails, causing voltage imbalance or short circuits, which requires precise diagnosis to avoid costly repairs.

Stay with us as we break down the key causes, symptoms, and step-by-step methods to fix DC bus faults efficiently.

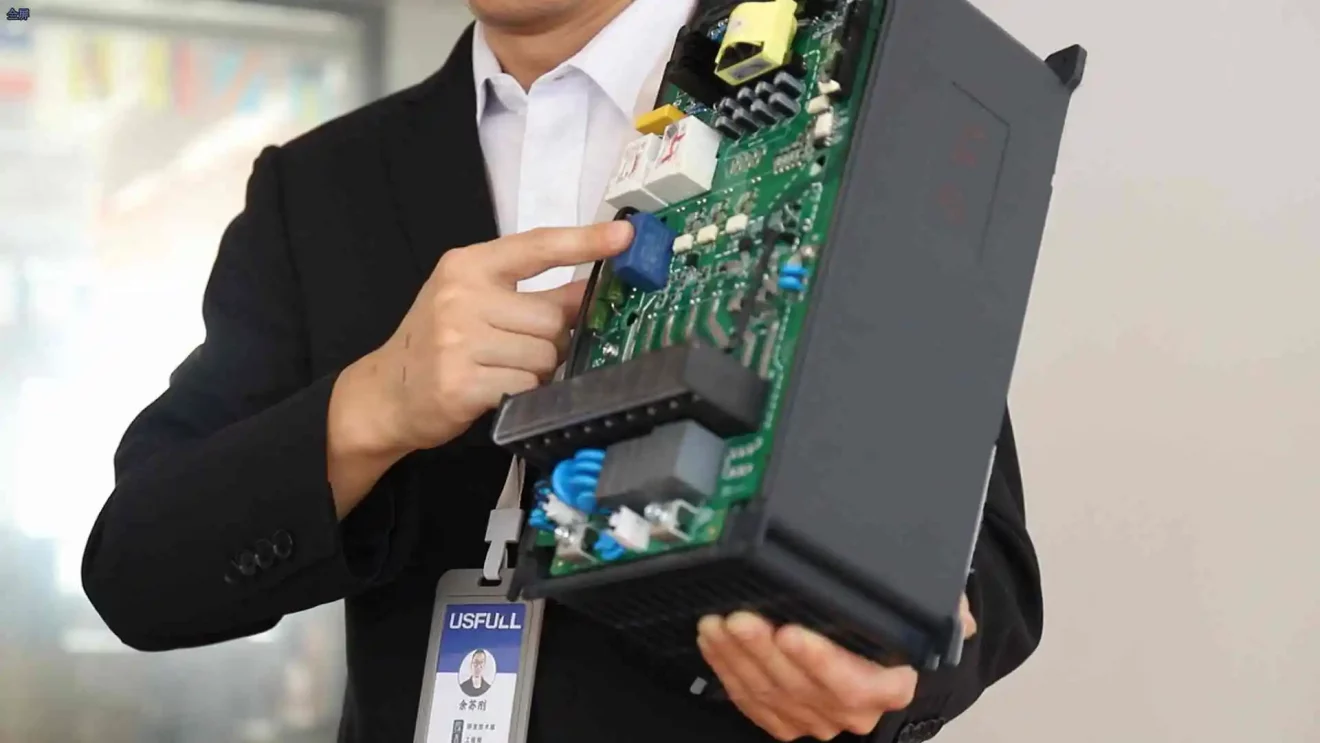

What is a DC Bus Fault in a Variable Frequency Drive?

A DC bus fault happens when there’s an abnormal current flow or short circuit across the internal DC link in a VFD. This link typically connects the rectifier and inverter stages. Common causes include capacitor failures, shorted IGBTs, or defective diodes. If not addressed immediately, it can damage the variable frequency inverter, leading to extended downtime and expensive equipment replacements.

What Are the Common Symptoms of DC Bus Faults?

Recognizing the symptoms early can help prevent bigger issues. Key indicators include:

• Frequent fault codes on the frequency inverter
• Sudden tripping during operation.
• Abnormal voltage readings across P/N terminals.
• Burnt smell or visible damage around the VFDcapacitors or IGBT modules. Monitoring these symptoms can aid in fast fault isolation before significant damage spreads across the Variable Speed Drive (VSD)

Why Does a VFD Experience a DC Bus Short Circuit?

Short circuits in the DC bus are typically caused by:

• Capacitor breakdown due to overvoltage or age.
• IGBT or diode module failure leading to bridging between P and N terminals.
• Incorrect external wiring or load conditions. Understanding these causes helps prioritize the inspection of the most vulnerable components first, saving diagnostic time and reducing unnecessary part replacements.

How to Systematically Troubleshoot DC Bus Faults?

Effective troubleshooting requires a systematic approach:

• Disconnect power and discharge the VFD
• Visually inspect for damaged capacitors, burnt components, or liquid leaks.
• Use a multimeter to check the resistance across the P and N terminals.
• Test rectifier diodes and IGBT modules separately.
• Gradually reconnect circuits one by one to isolate the faulty section. Being methodical minimizes the chance of misdiagnosis and protects sensitive inverter VFD components.

Can Misdiagnosis of DC Bus Faults Lead to Greater Damage?

Yes. Premature disassembly of components without understanding circuit interactions can cause greater harm. For instance, incorrectly assuming an IGBT block failure might lead to unnecessary and costly replacements. A damaged switching transistor in the auxiliary power supply can mimic a major fault in the variable frequency inverter. Careful analysis prevents expensive errors and ensures correct repairs.

How Important Is Fault Probability Analysis in DC Bus Repair?

Analyzing fault probability helps streamline troubleshooting. For example:

Electrolytic capacitors often show physical signs like swelling or leakage.

IGBT and rectifier failures are less visually obvious but can be confirmed via electrical testing. Prioritizing the most likely failure points leads to faster and more accurate repairs, boosting the operational reliability of the variable speed drive.

What Tools Are Essential for Diagnosing VFD DC Bus Faults?

Essential tools include:

• A reliable digital multimeter with diode testing capability.
• An insulation resistance tester.
• An oscilloscope (for advanced waveform analysis). Having the right tools ensures accurate measurements, protects the frequency inverter, and speeds up the diagnostic process, reducing downtime in critical systems.

How Often Should Preventive Maintenance Be Performed on VFDs?

Regular preventive maintenance minimizes unexpected DC bus faults. Key practices include:

• Checking capacitor health every 3–5 years.
• Inspecting for loose connections, dust, and signs of corrosion.
• Monitoring operating temperatures to prevent thermal stress on the VSD. Preventive maintenance not only extends equipment life but also enhances the performance and reliability of the entire inverter VFD

Careful analysis and systematic troubleshooting are key to solving DC bus faults in VFDs efficiently.
