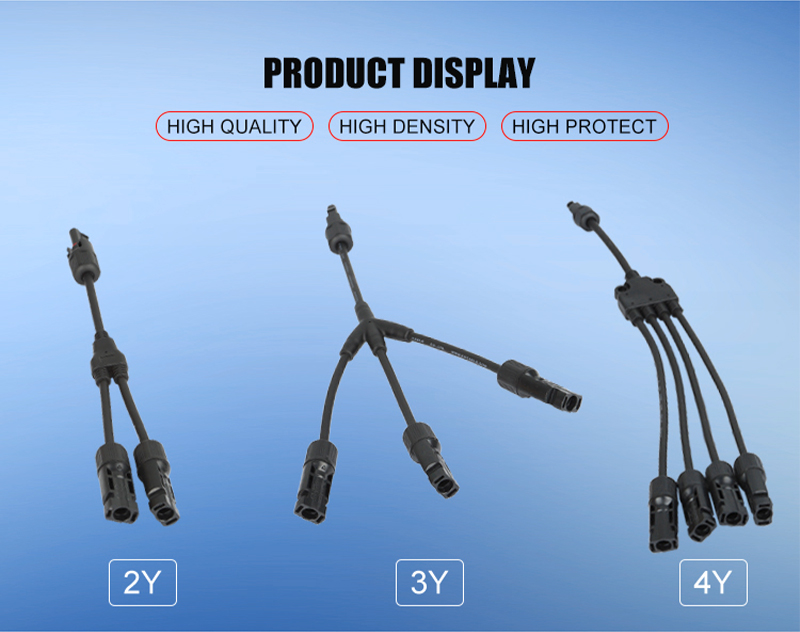

| Connector Type | 2Y/3Y/4Y |
| Rated Voltage | 1000VDC |
| Rated Current | 20A(4mm²) 30A(6mm²) |
| Single Core Cable Section | 1.5mm²~6mm² |
| Cable Outer Diameter | 1.5mm²~6mm² |
| Ambient Temperature Range | -40℃~+105℃ |
| Degree of Protection,Mated | IP67 |
| Contact Resistance | ≤0.5mΩ |
| Insulation Resistance | >500mQ |
| Contact Material | Copper alloy, tin plated |
| Insulation Material | PPO,Black |
| Terminal Connection | Crimping |
| Flame Class | UL94-VO |
| Safety Class | II |
USFULL Solar Connector, users can directly connect solar panel to inverter, without the consideration of anti-reverse device.
For different system, you can choose different voltage.
USFULL PV connectors are widely used in solar system, from small charge controller, home use inverter system, to larger type inverter system, we offer various types of connectors, always be one of them suitable for you.

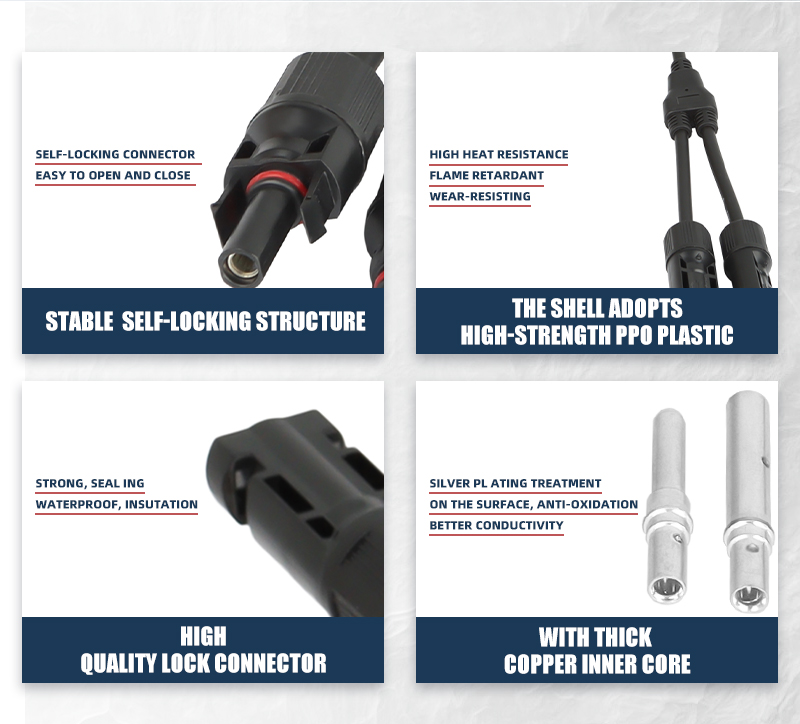

The feature of solar connector:

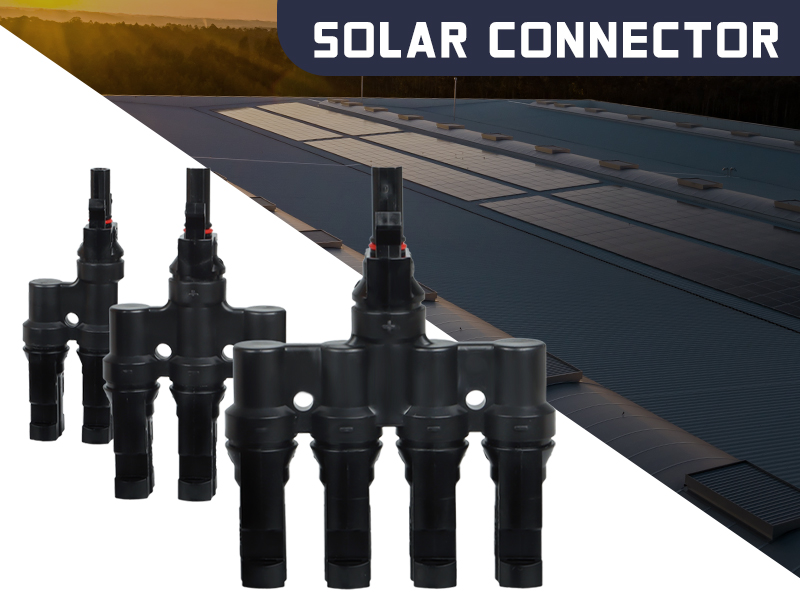

SOLAR T- BRANCH PARALLEL CONNECTORS
• Insulation Material: PPO
• Rated Current: 20A(4mm²）
• Rated Voltage: DC1000V
• Contact Resistance: ≤5mΩ
• Insulation Resistance: >500mΩ
• Operating Temperature Range: -40℃ until+90℃
• Degree of Protection: IP67
• Flame Class: UL94-V0
• Safety Degree: Ⅱ
• Suitable Single Core Cable Section: 1.5mm² — 6mm²

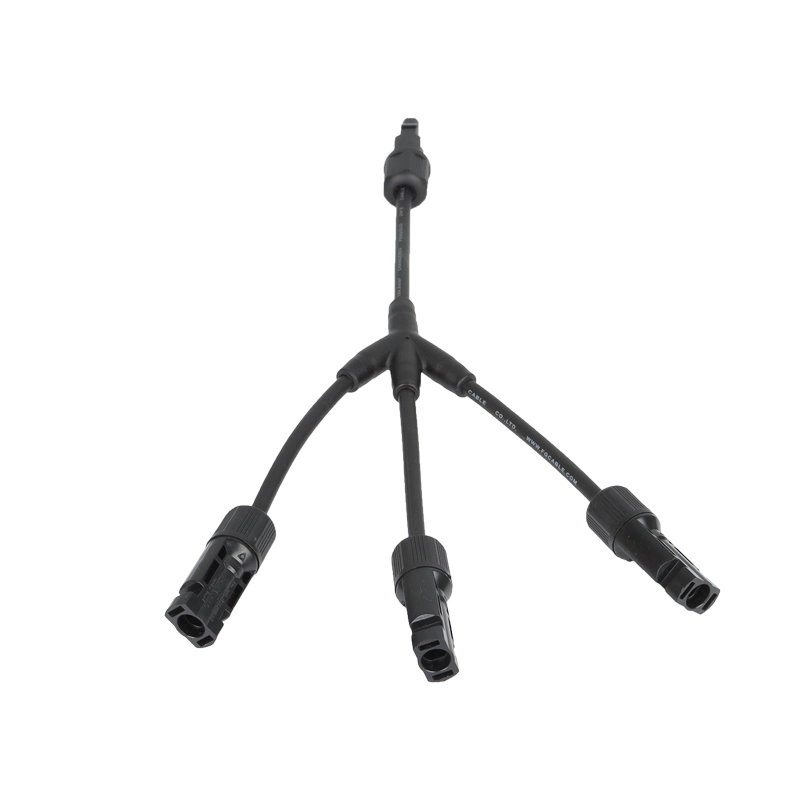

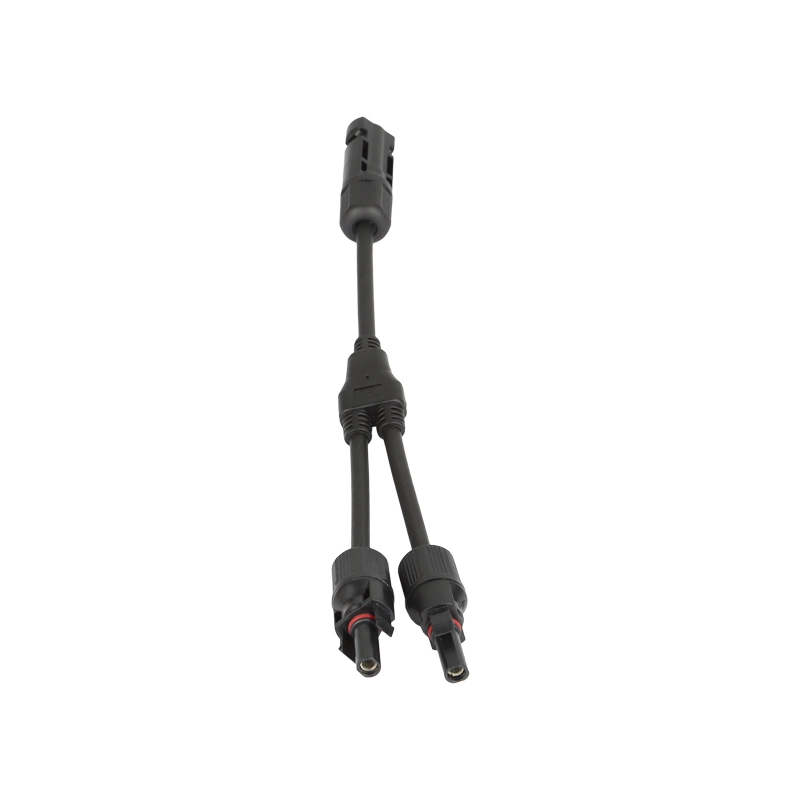

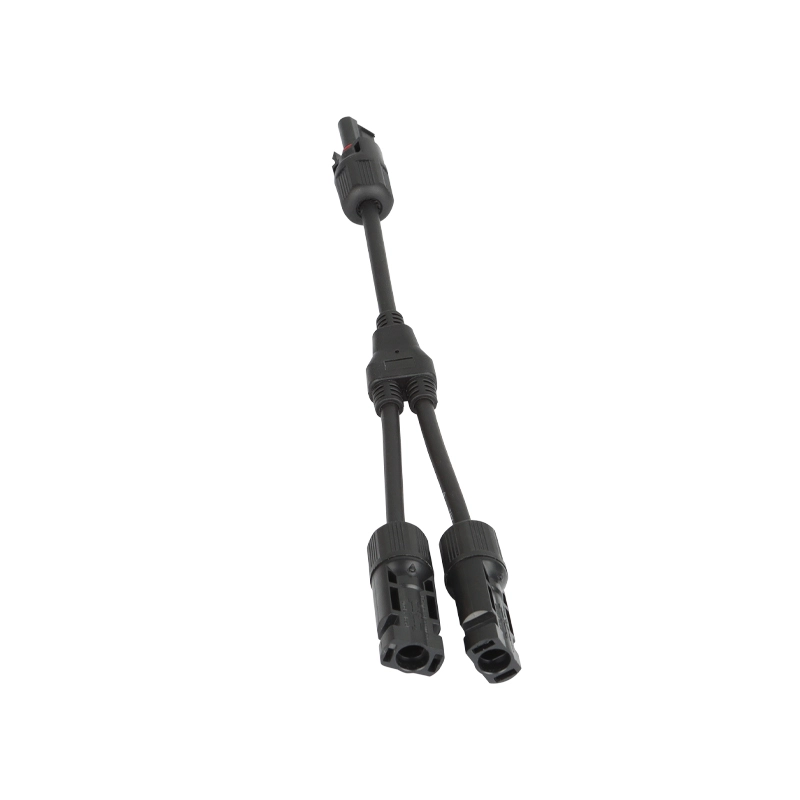

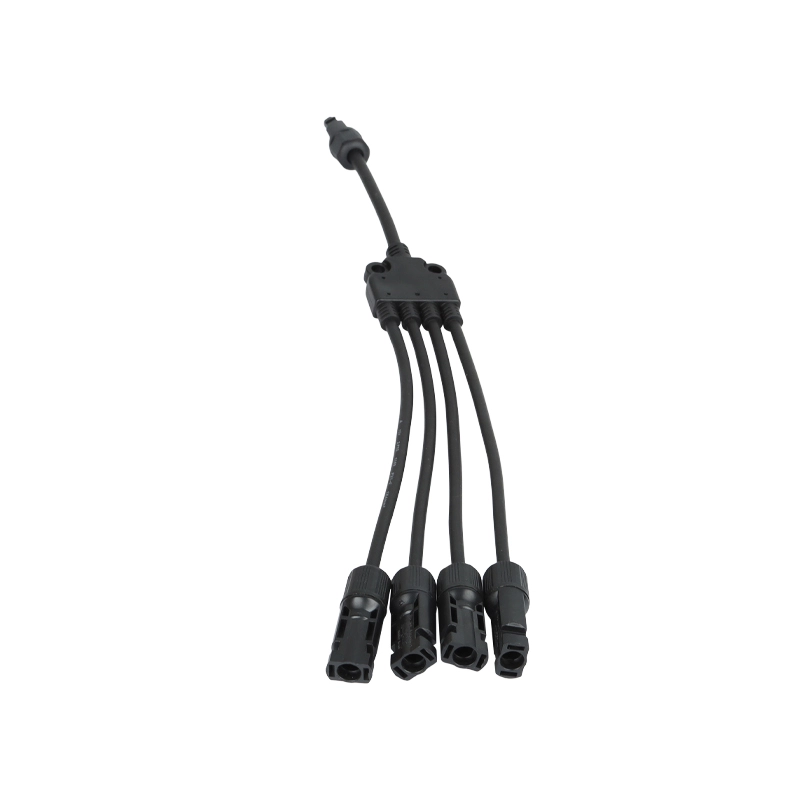

SOLAR Y- BRANCH PARALLEL CONNECTORS
Ensure safe and efficient usage of solar panel connecting to inverter, without worry of wrong connection.
