Electrical faults can damage equipment, disrupt operations, and even cause fires. Without the right protection, one voltage surge or overload can destroy an entire system. The good news? Two essential devices can prevent these costly issues.
A DC Surge Protect Device (SPD) and a circuit breaker protect against two separate, critical electrical threats: voltage surges (protecting sensitive equipment) and overcurrent (protecting wiring and preventing fires). When used together, they ensure complete protection for your wiring and electronic equipment.
Both are indispensable for reliable and safe electrical systems—let’s explore why.
What Is a Circuit Breaker?
A circuit breaker is a safety device designed to stop the flow of electricity when current levels exceed safe limits. This protects circuits and prevents potential fires caused by overheating wires.
When an overload or short circuit occurs, the breaker automatically “trips,” cutting off power until the fault is fixed. Once the issue is resolved, it can be reset and reused—making it both practical and durable.

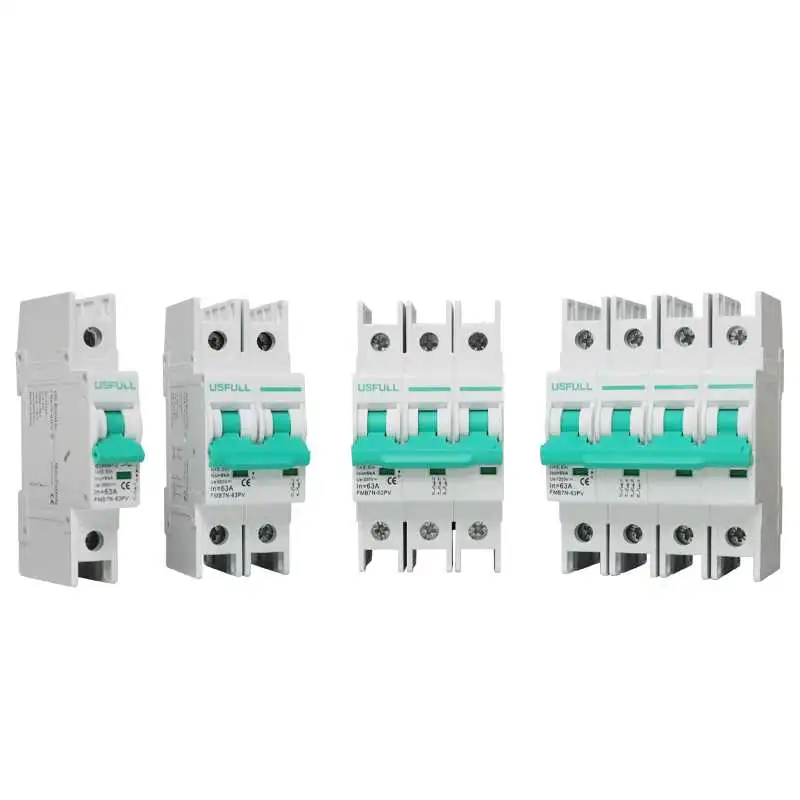

There are many types of circuit breakers, including AC and DC models for industrial, residential, and solar systems. A DC circuit breaker is particularly important for photovoltaic and battery installations, where current flows in one direction.
DC products manufacturer supplier continue to improve safety standards, ensuring that modern devices meet international requirements for quality, performance, and long service life.
What Is a DC Surge Protect Device(SPD)?

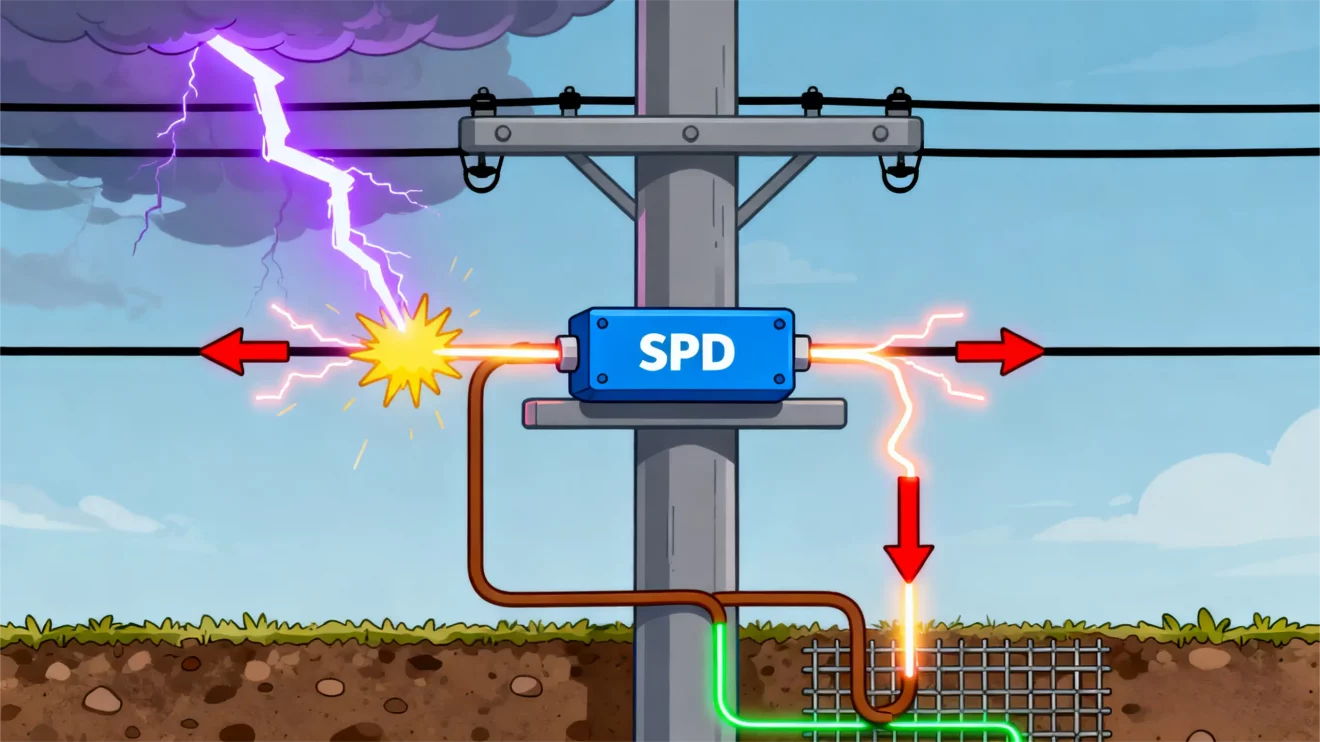

A DC Surge Protect Device (SPD) is designed to defend electrical systems from voltage spikes (or surges). These spikes may occur due to lightning strikes, grid fluctuations, or large equipment switching on and off.

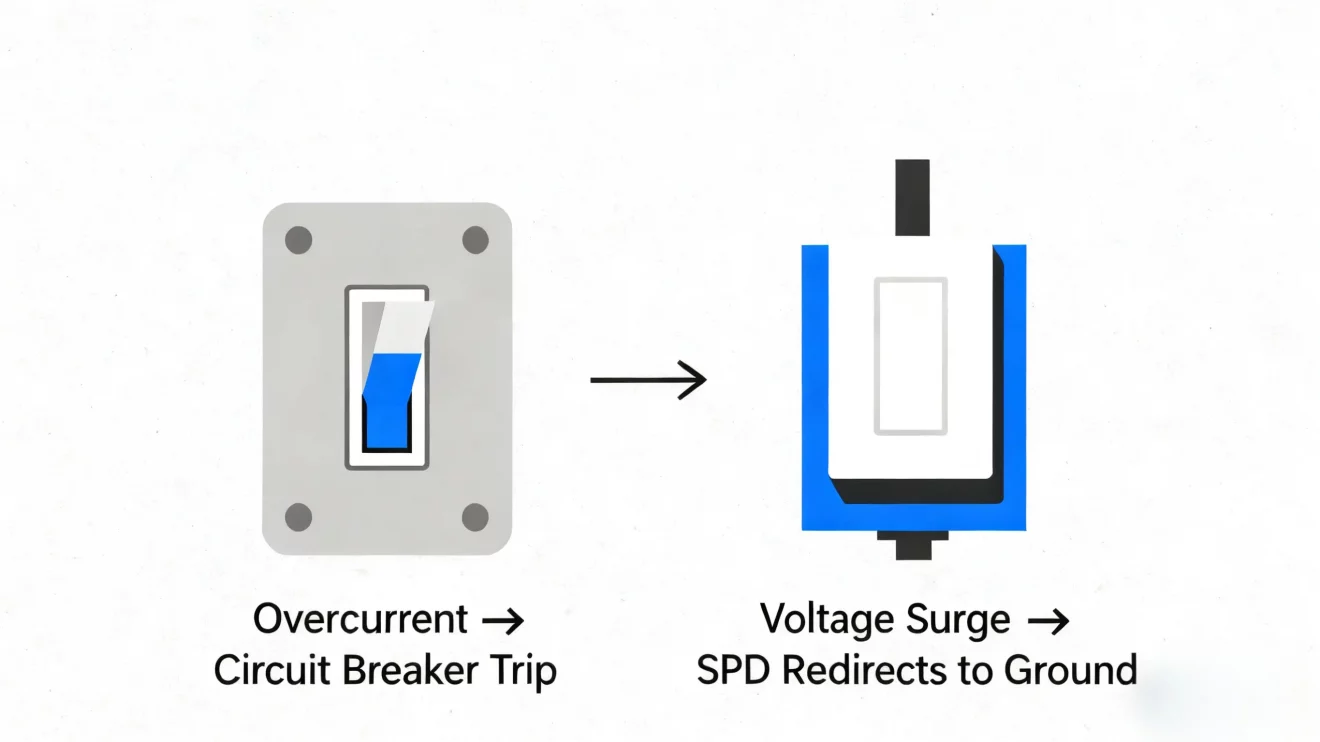

Unlike a circuit breaker, which responds to excess current, a DC SPD reacts to excess voltage. It detects sudden increases in voltage and redirects the excess energy to the ground, keeping sensitive devices safe.

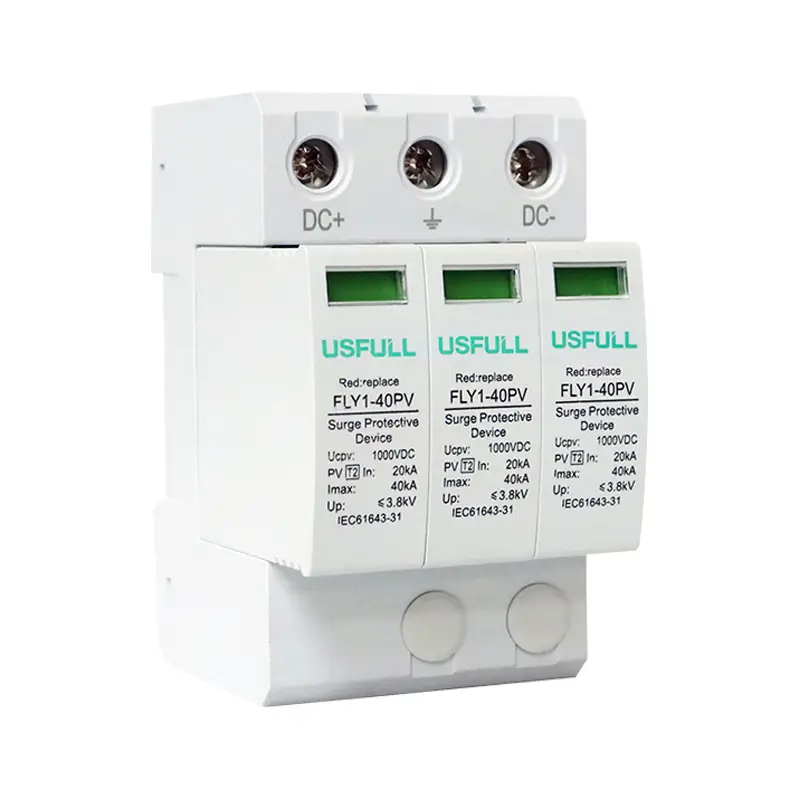

There are AC SPDs and DC SPDs, depending on the system configuration. In solar power systems, DC SPDs play an important role in protecting inverters, charge controllers, and monitoring devices from transient voltages.
High-quality SPDs are tested according to IEC and CE standards to ensure fast response times and reliable operation under extreme conditions.
Circuit Breakers: Protecting Wiring and Preventing Fire
Every wire is designed to handle a specific current load. When that limit is exceeded, wires overheat, insulation breaks down, and electrical fires can occur. This is where the circuit breaker becomes critical.
By continuously monitoring current flow, the breaker trips when current exceeds the safe threshold—cutting power before damage happens. It interrupts the circuit mechanically or magnetically and isolates the faulted section.
Compared with fuses, circuit breakers are easier to reset, reusable, and provide clear visual indicators of faults. Modern systems rely on them not only for protection but also for convenience in maintenance and system control.
Reliable DC products manufacturer supplier provide devices suitable for a range of environments, from residential buildings to large industrial and solar power systems.
DC SPDs: Protecting Equipment from Voltage Spikes
While circuit breakers protect wiring, DC SPDs defend your connected equipment. A sudden surge lasting only milliseconds can permanently damage expensive electronics such as computers, inverters, and PLCs.
A DC SPD detects high voltage and immediately diverts it through the grounding path, reducing the potential difference across your equipment. This process happens almost instantaneously, often within nanoseconds.
In renewable energy and communication systems, DC SPDs are crucial. Solar arrays and communication towers are particularly vulnerable to lightning-induced surges. Installing DC SPDs at key points like combiner boxes and inverter terminals ensures better system longevity and reliability.
Choosing SPDs from trusted DC products manufacturer supplier ensures compliance with safety standards and consistent protection for critical installations.
When to Use Each Device?
Both devices are important, but their functions are distinct:
| Device | Primary Threat Protected Against | What It Protects | Use When… |
| Circuit Breaker | Overcurrent, Overload, Short Circuit | Wiring & Infrastructure | You must prevent fire risk and comply with electrical codes. |
| DC SPD | Voltage Spikes, Transients, Surges | Sensitive Electronic Equipment | You must safeguard expensive electronics from grid instability or lightning. |
In modern electrical design, both are installed together. The circuit breaker stops dangerous current flow, while the DC SPD redirects unwanted voltage surges. This layered protection provides full coverage for both wiring and equipment.
Conclusion
A circuit breaker and a DC Surge Protect Device (SPD) serve two separate yet complementary purposes. The breaker protects your electrical infrastructure from current overload, while the SPD shields your devices from voltage surges.
Using both ensures comprehensive protection against electrical faults, minimizing downtime, repair costs, and fire risks. Whether you’re setting up a commercial building, an industrial facility, or a solar power system, combining these two devices guarantees safer and more reliable performance.
When choosing your protection components, look for a reliable DC products manufacturer that offers certified, high-quality products suited for your application.
Electrical protection isn’t just about compliance—it’s about safety, stability, and the longevity of your entire power system.
