Electrical surges or overcurrents can destroy valuable solar or industrial equipment in seconds. Without proper protection, downtime, equipment failure, and costly replacements follow. Using the right surge protective device or fuse prevents disaster and keeps your power systems safe.
A surge protector (SPD) defends against transient overvoltage, while a fuse prevents overcurrent damage. SPDs divert high voltage to the ground; fuses melt to break the circuit. Both are crucial safety devices, but each serves distinct protection roles in solar, industrial, and residential systems.
Keep reading to understand how each works—and which protection device your system really needs.
Surge Protector vs Fuse: Basic Definition Comparison
What Are Surge Protectors?
A surge protector, also known as a surge protective device (SPD), is an essential component designed to defend electrical systems against transient voltage spikes. These sudden voltage surges—caused by lightning, power grid switching, or nearby faults—can damage sensitive electronics and solar inverters.
The SPD works by diverting excess voltage to the ground once the system voltage exceeds a safe threshold. This process limits the voltage that reaches connected devices. In solar photovoltaic (PV) applications, a DC surge protector device or PV SPD is installed in the combiner box or DC distribution panel to shield solar modules and inverters.
As a surge protective device manufacturer in China, USFULL designs SPDs tested to IEC and TUV standards, ensuring stable performance across global markets. Our DC SPDs and solar SPDs are built to protect solar water pumping systems and industrial equipment with consistent, high-quality surge suppression.
What Are Fuses?
A fuse is a straightforward, cost-effective device designed for overcurrent protection. It prevents dangerous current overloads by interrupting the electrical circuit when current exceeds a safe limit. Inside the fuse, a thin metal wire melts under excessive current, effectively breaking the connection and stopping power flow.
Fuses are used in power supplies, lighting systems, and industrial machines where consistent overcurrent protection is required. Unlike SPDs, fuses are single-use devices—once blown, they must be replaced. This simplicity makes them reliable, low-cost, and easy to maintain.
Fuse vs Surge Protector: How They Work
How Do Surge Protectors Work?

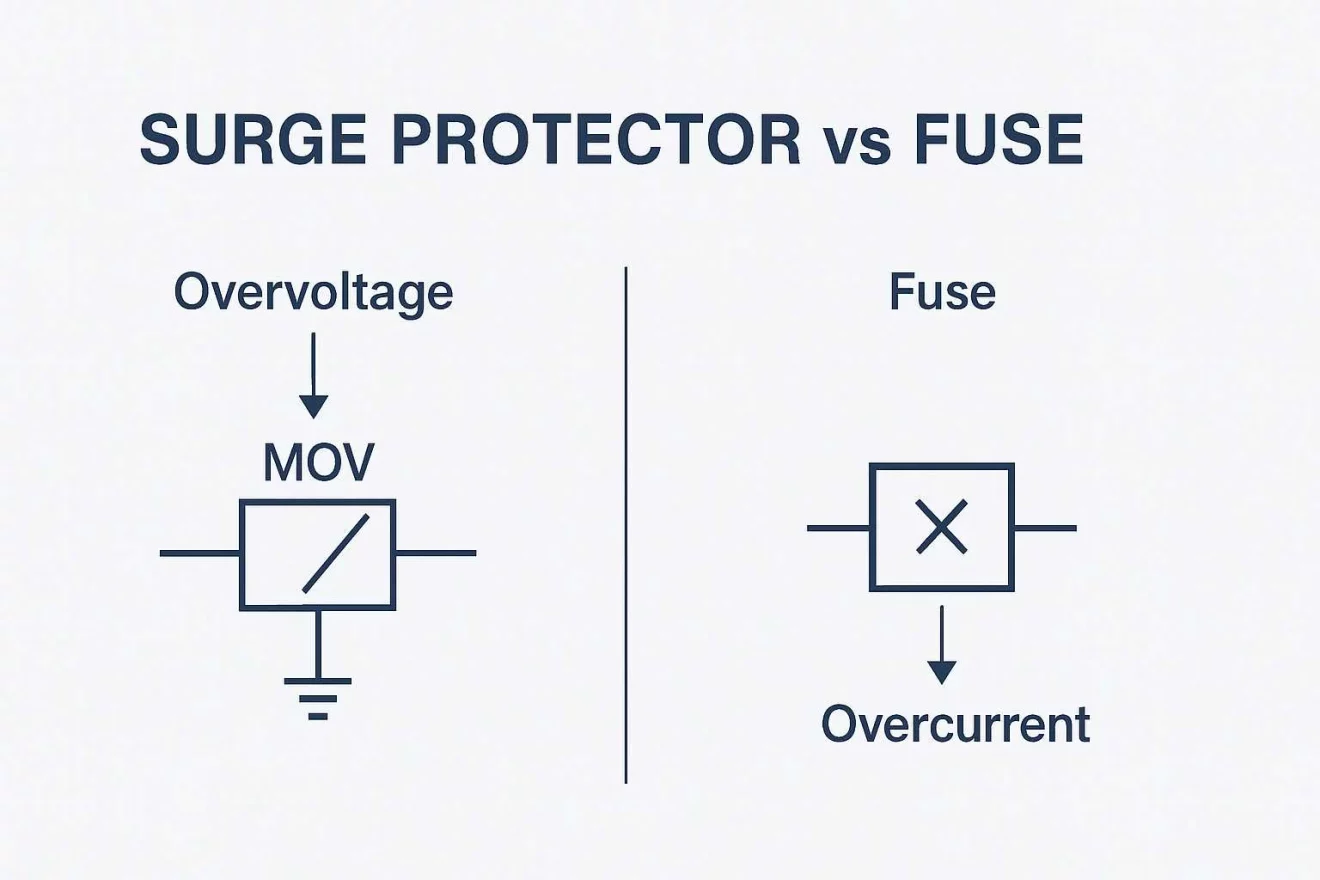

A surge protector or SPD operates by using a Metal Oxide Varistor (MOV) or similar component to monitor voltage. Under normal conditions, the MOV remains inactive and allows current to flow freely. When a voltage surge occurs—such as from a lightning strike—the MOV rapidly conducts, channeling excess energy to the ground and shielding connected devices.
SPDs have response times in nanoseconds, making them ideal for protecting sensitive electronics. In solar systems, DC SPDs safeguard PV strings and inverters, while AC SPDs protect distribution panels. The joule rating determines how much energy the SPD can absorb before replacement is needed.
Modern solar surge protectors often include visual indicators and multi-mode protection (line-to-neutral, line-to-ground, and neutral-to-ground), providing layered defense in both residential and industrial systems.
How Do Fuses Work?
A fuse protects circuits from overcurrent rather than voltage surges. It contains a calibrated wire or filament that melts when current exceeds its rated capacity, disconnecting the circuit. The reaction time depends on the fuse type—fast-acting fuses respond immediately, while slow-blow fuses tolerate short startup surges typical in motors or transformers.
Fuses are essential in both AC and DC circuits. In solar PV systems, DC fuses protect strings and inverters from reverse currents, ensuring safe and reliable operation. Although fuses require replacement after activation, they provide a fail-safe method of circuit protection that’s easy to implement and highly dependable.
What Is the Difference Between Surge Protectors and Fuses?
| Feature | Surge Protector (SPD) | Fuse |
| Primary Purpose | Protects equipment from transient overvoltage (e.g.lightning, switching surges) | Protects circuit from overcurrent (e.g.short circuits, overloads) |
| Type of Threat | High-voltage spikes or surges (lasting micro- to milliseconds) | Excessive current over time (lasting milliseconds to seconds) |
| Response Time | Extremely fast – nanoseconds | Slower – milliseconds |
| Operation Principle | Diverts surge energy to ground once voltage exceeds threshold | Melts a metal wire once current exceeds its rating, breaking the circuit |
| Resettable? | Often resettable or continues working after minor surges | Not resettable – must be replaced after blowing |
| Durability | Designed to handle multiple surges (depending on energy level) | One-time use per event |
| Indication | Some have visual/fault indicators (e.g. green/red windows) | Often no indicator unless used with a fuse holder with status light |
| Installation Location | Parallel to the circuit (shunts surge away) | In series with the load (interrupts flow) |
| Example Use Cases | Data centers, solar PV systems, telecom, home surge strips | Power supplies, appliances, lighting circuits, automotive systems |
In summary, an SPD (or surge protective device) provides transient voltage protection, while a fuse provides overcurrent protection. Both are essential, but they operate in entirely different ways to ensure system safety.
Choosing Between Surge Protectors and Fuses
Application-Specific Considerations
Choose a surge protector or SPD when your system is prone to voltage spikes—such as in solar PV installations, telecommunications, or industrial automation setups. In these environments, DC SPDs and solar SPDs safeguard sensitive inverters and electronic controllers.
Use a fuse when protection against current overload is required, such as for motors, power supplies, and control circuits. For solar systems, DC fuses are installed in combiner boxes to prevent string faults or reverse current flow.
When sourcing from a surge protective device supplier or fuse supplier, always confirm compliance with IEC and CE standards for reliable global performance.
Cost and Installation Factors
SPDs (especially solar surge protectors) often have a higher upfront cost due to advanced components like MOVs or gas discharge tubes. However, they save money long-term by preventing costly equipment failures. Installation is simple—SPDs are mounted parallel to the circuit and often feature pluggable modules for easy replacement.
Fuses, on the other hand, are inexpensive and compact. They require series installation and manual replacement after each fault. For large systems, the cost of maintenance and replacement can add up, but they remain the simplest solution for overcurrent protection.
Maintenance and Replacement
Surge Protector Maintenance
Regular inspection is crucial for SPDs. Check indicator windows or LEDs to ensure active protection. Even if no surge events occur, SPDs in solar or industrial systems should be replaced every 3–5 years. For solar arrays, PV SPDs and DC SPDs endure continuous stress from environmental factors, so preventive replacement ensures uninterrupted protection.
Fuse Replacement and Inspection
Fuses require no active maintenance—once they blow, they simply need replacement. Always use the same current rating and type (fast-acting or slow-blow). Periodically inspect fuse holders for corrosion or loosened contacts, which can lead to heat buildup. Keeping spare fuses on-site reduces downtime and ensures quick recovery after an overcurrent incident.
Both surge protectors (SPDs) and fuses are vital to electrical safety.
Use SPDs or solar surge protectors to prevent voltage damage.
Use fuses for overcurrent protection.
As a professional surge protective device manufacturer in China, USFULL provides complete protection solutions — from DC surge protector devices to PV SPDs and DC fuses — ensuring safer, more reliable energy systems for industrial and solar applications worldwide.
