When motors run too fast or too slow, systems fail, energy is wasted, and downtime rises. The solution: understanding and controlling motor speed precisely with a variable frequency drive (VFD).
The maximum and minimum speeds of a Variable Frequency Drive (VFD) depend on the drive’s frequency range, the motor’s design, and application requirements. Generally, a VFD can operate from 0 Hz up to 120 Hz or higher, but safe limits depend on torque, cooling, and mechanical balance.
Choosing the right frequency inverter and understanding its speed range helps you protect your equipment and get the most efficiency from your system.
How Does a VFD Work?
A Variable Frequency Drive (VFD), also known as a Variable Speed Drive (VSD) or frequency inverter, controls the speed of an AC induction motor by changing the frequency and voltage of the power it supplies. The formula for synchronous motor speed is:
Synchronous Speed (RPM) = 120 × Frequency (Hz) / Number of Poles
By adjusting this frequency, the inverter VFD directly changes the motor’s rotational speed. Inside the VFD, AC power is first converted to DC through a rectifier. The DC is then inverted back to AC using transistors that simulate a smooth sine wave at variable frequency and voltage levels.
This flexibility allows users to match motor speed precisely to process demand. A properly programmed VFD manufacturer’s drive can reduce power consumption by up to 50% in fan and pump applications. It also provides excellent control for conveyors, compressors, and machine tools, delivering smooth acceleration, deceleration, and consistent torque.
VFD Soft Start

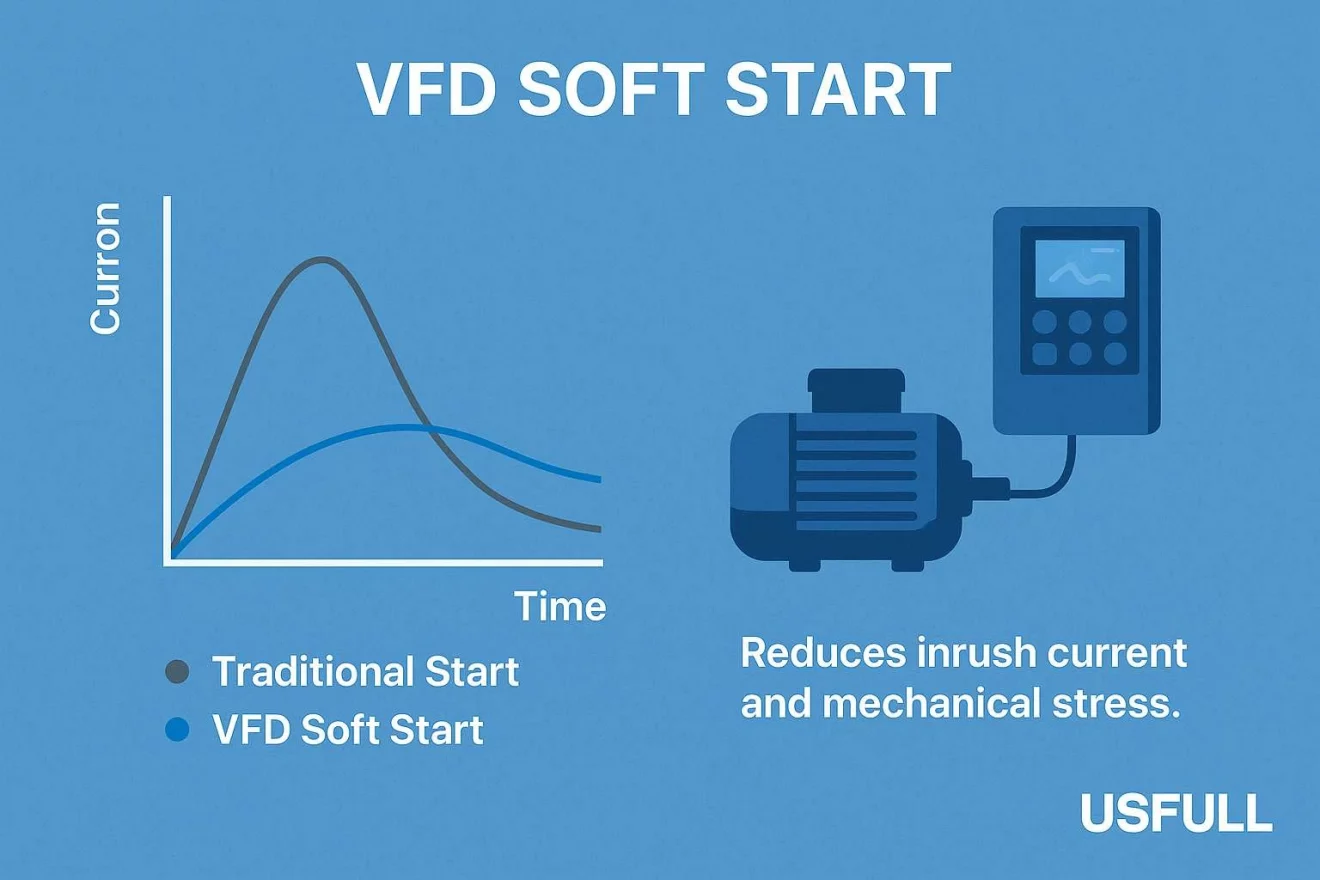

When a standard motor starts directly across the line, the current surge can reach six to eight times its rated current. This not only wastes energy but can also damage windings, couplings, and bearings. A VFD soft start feature eliminates this problem.
During startup, the variable frequency inverter gradually increases output frequency and voltage, gently bringing the motor to speed. This process significantly reduces mechanical stress and electrical shock, extending the life of both motor and driven equipment. In contrast to traditional soft starters that only limit voltage, a VFD provides full control of both voltage and frequency, giving smoother operation and improved torque control.
VFD Minimum Speed
The minimum speed of a Variable Frequency Drive is the lowest frequency at which the motor can safely operate without overheating or losing torque. While most VFDs can technically reach 0 Hz (zero speed), practical operation is often limited by the motor’s cooling design.

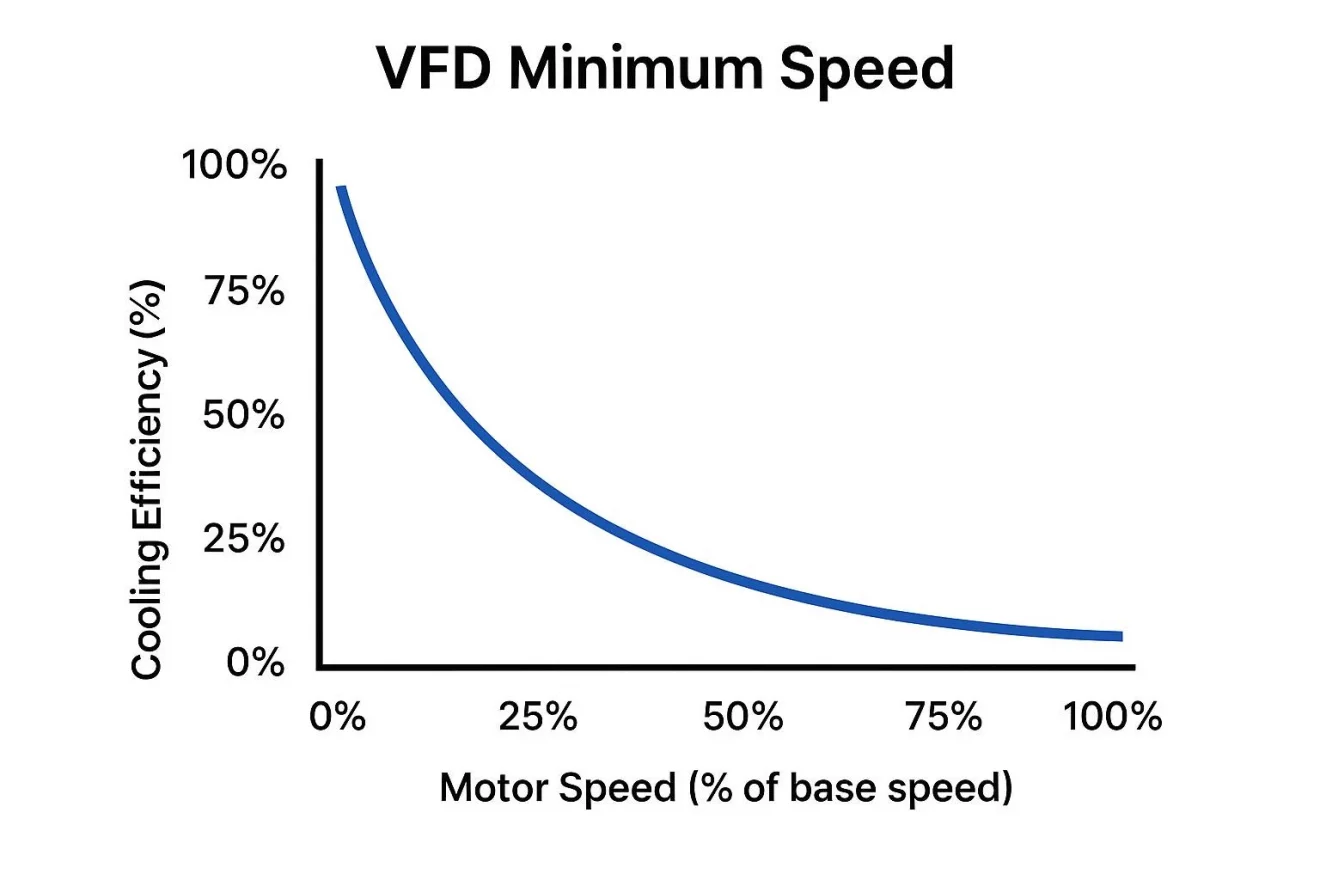

For Totally Enclosed Fan-Cooled (TEFC) motors, the cooling fan is mounted on the motor shaft. As the shaft slows, cooling decreases, causing temperature rise at low speeds. Prolonged operation under 15 Hz (or about 25% of rated speed) may result in excessive heat buildup unless the system includes auxiliary cooling.
Vector Control VFDs and VSDs can maintain full torque even at very low speeds by using feedback algorithms to regulate current precisely. This makes them suitable for conveyors, hoists, and positioning applications where accurate low-speed control is critical.
A good rule of thumb: for standard motors, maintain a minimum operating speed above a 4:1 ratio unless external cooling is provided. Always check your motor’s data sheet or consult your VFD supplier before running continuously at low frequencies.
VFD Maximum Speed
The maximum speed of a frequency inverter depends on both the drive’s maximum output frequency and the motor’s mechanical limits. Many VFDs allow frequencies up to 120 Hz or even 400 Hz for special motors, meaning the motor can run two to eight times faster than its base speed. However, this does not mean it’s always safe or efficient to do so.
As motor speed increases beyond its rated frequency, the available torque drops while vibration, bearing wear, and heat generation rise. Over-speeding can cause serious mechanical imbalance, leading to premature failure of bearings, rotors, or couplings. Moreover, at very high speeds, the required voltage to maintain torque can exceed what the VFD can provide, resulting in efficiency loss.
In industrial applications such as fans and pumps, overspeeding is usually unnecessary because the torque requirement rises proportionally with the square of speed. Running too fast may overload both the motor and the drive. According to VFD manufacturers guidelines, overspeed should generally not exceed 20% above the base frequency unless both the motor and system are designed for it.
How Do You Calculate the Maximum and Minimum Speeds for a VFD?

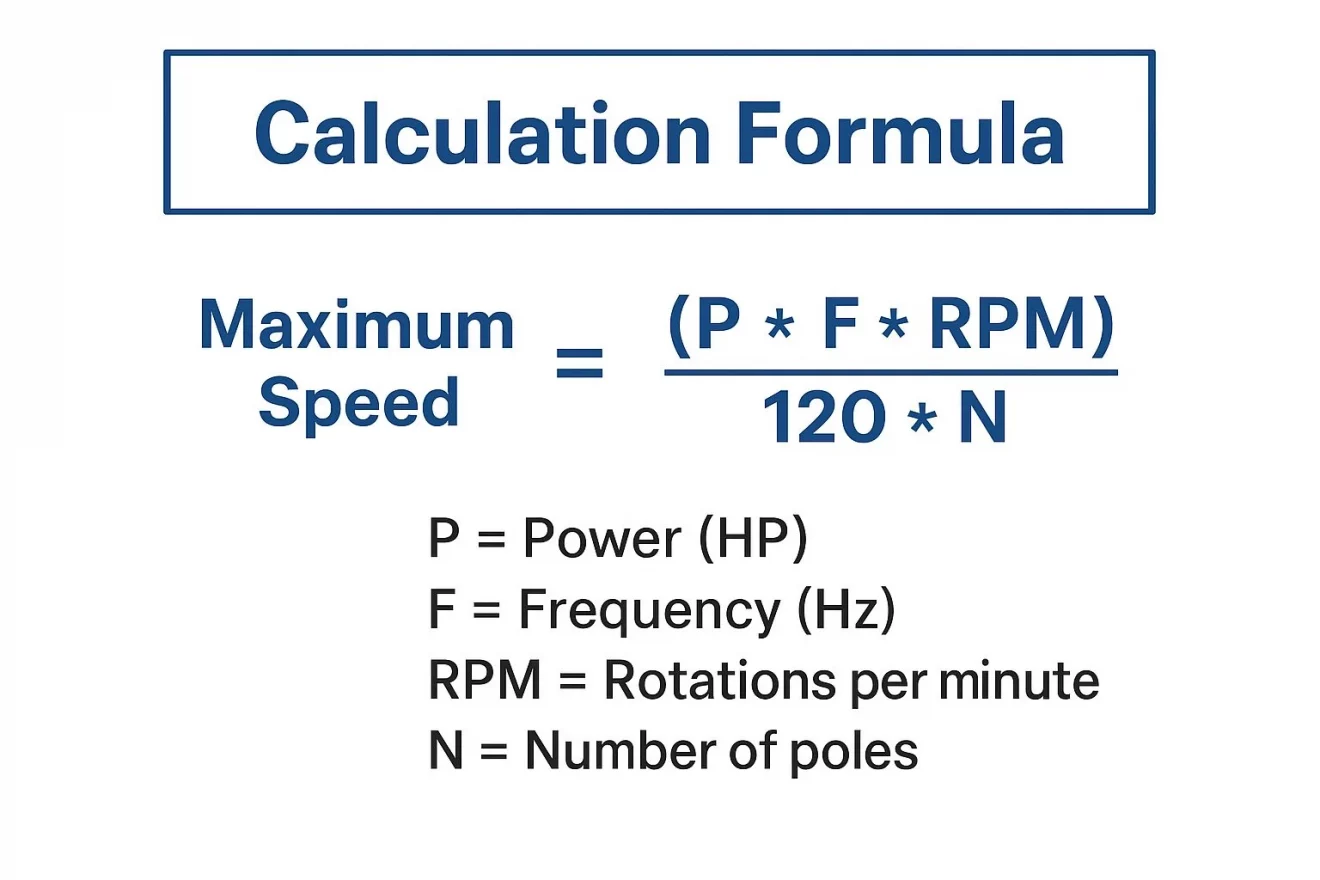

The simplest way to estimate the maximum and minimum speeds of a VFD is by using the synchronous speed formula:
Ns = 120 × f / P
Where:
Ns = Synchronous speed (RPM)
f = Frequency output from the variable frequency inverter (Hz)
P = Number of motor pole
To find the minimum speed, use the lowest operating frequency (for example, 10 Hz).
To find the maximum speed, use the highest frequency setting allowed by the VFD (for example, 80 Hz or 100 Hz).
Subtract a small percentage for slip (1%–5%) to obtain the actual shaft speed.
Example: For a 4-pole motor (P = 4) rated at 50 Hz:
Base speed = 120×50/4 = 1500 RPM
At 10 Hz → 300 RPM minimum
At 80 Hz → 2400 RPM maximum
In practice, these are adjusted based on motor cooling and mechanical limits.
Knowing these calculations helps engineers configure drives correctly, ensuring that the VFD operates within safe parameters and provides reliable torque and performance.
What Are the Benefits of Calculating the Maximum and Minimum Speeds for a VFD?
Determining accurate speed limits offers several advantages for both system designers and operators. First, it ensures that motors run within safe thermal and mechanical boundaries, avoiding overheating, excessive vibration, or bearing damage. Second, it allows for more efficient system design, helping select the right Variable Speed Drive size and control mode for the application.
By understanding maximum and minimum speeds, maintenance engineers can prevent overloads, improve energy efficiency, and extend equipment lifespan. For example, pumps and fans controlled by a variable frequency drive can match output precisely to demand, reducing energy consumption by up to 30–50%.
Accurate calculations also simplify troubleshooting. If a motor is stalling or overheating, verifying speed and torque values against calculated limits can pinpoint whether the issue stems from incorrect VFD settings or mechanical problems.
Lastly, businesses benefit financially — lower maintenance costs, reduced downtime, and optimized production. Partnering with a trusted VFD manufacturer in China, such as USFULL, ensures access to expert guidance, robust product quality, and custom drive configurations tailored to your project needs.
